‹ Home › Inventory › 2025 Harley-Davidson® Street Bob™ Iron Horse Metallic w/Laced Wheels

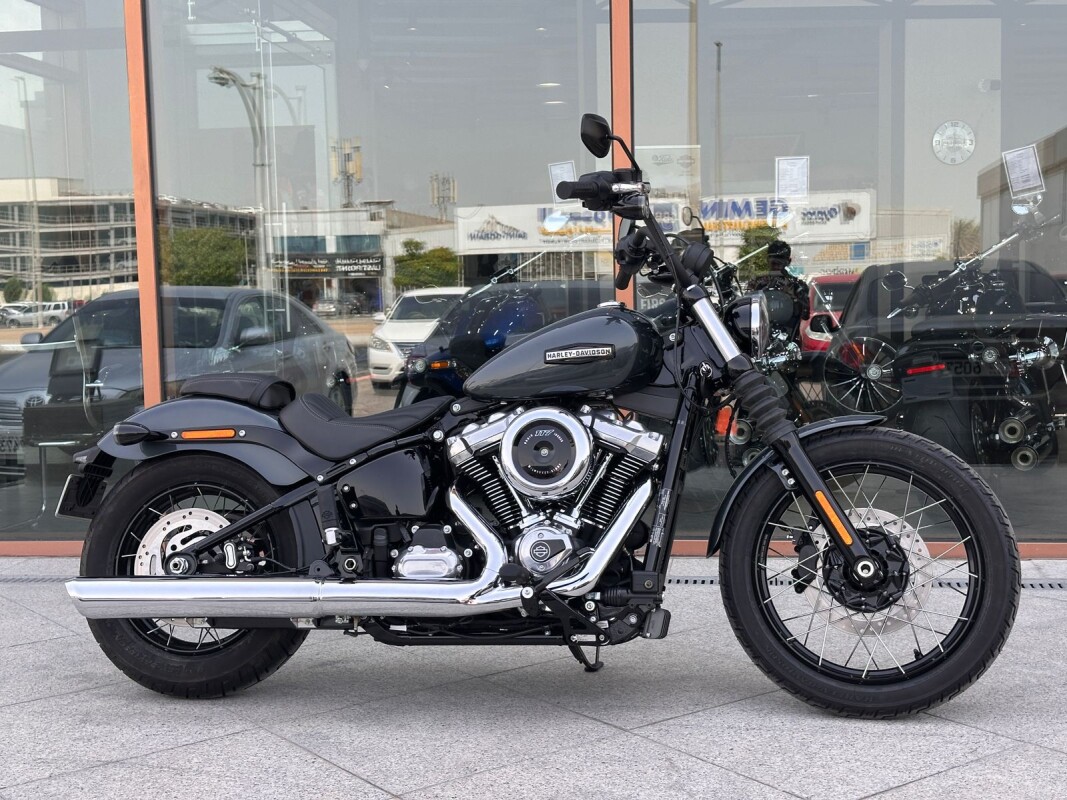

The Street Bob is a lean, mean bobber with mini-ape handlebars, mid-mounted foot controls, and a massive Milwaukee-Eight^® 117 Classic V-twin, which makes the slim-but-tough Softail^® quicker than ever.

Specifications

Dimensions

add remove
- Length:

  2320 mm
- Seat height, unladen:

  680 mm
- Ground clearance:

  125 mm
- Rake:

  30
- Trail:

  157 mm
- Wheelbase:

  1630 mm
- Tyres, front specifications:

  100/90B19,57H,BW
- Tyres, rear specifications:

  150/80B16,77H,BW
- Fuel capacity:

  13.2 l
- Oil capacity:

  2.8 l
- Weight, as shipped:

  282 kg
- Weight, in running order:

  293.02 kg
- Tyre, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Classic
- Bore:

  103.5 mm
- Stroke:

  114.3 mm
- Displacement:

  1923 cm³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  163 Nm
- Engine torque (RPM):

  2500
- Horsepower:

  98 HP / 73 kW @ 4600 rpm
- Lean angle, right (deg.):

  28.5
- Lean angle, left (deg.):

  28.5
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100 km)
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
- Wheels, front type:

  Black, Annihilator cast aluminum
- Wheels, rear type:

  Black, Annihilator cast aluminum
- Brakes, type:

  Solid, uniform expansion rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
